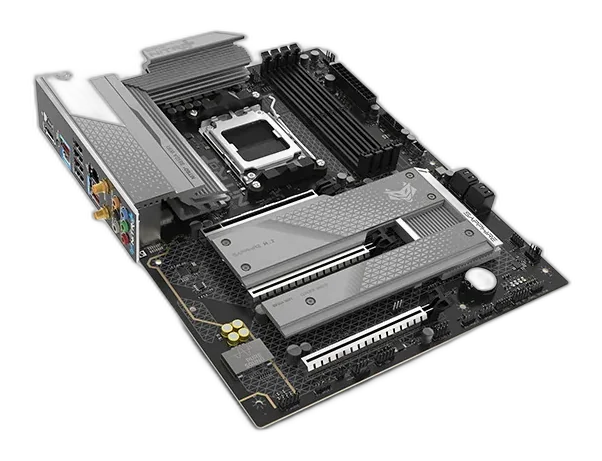

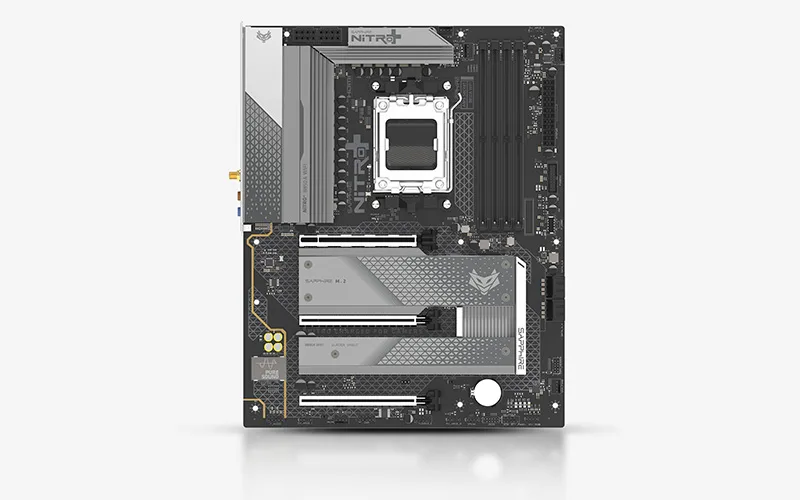

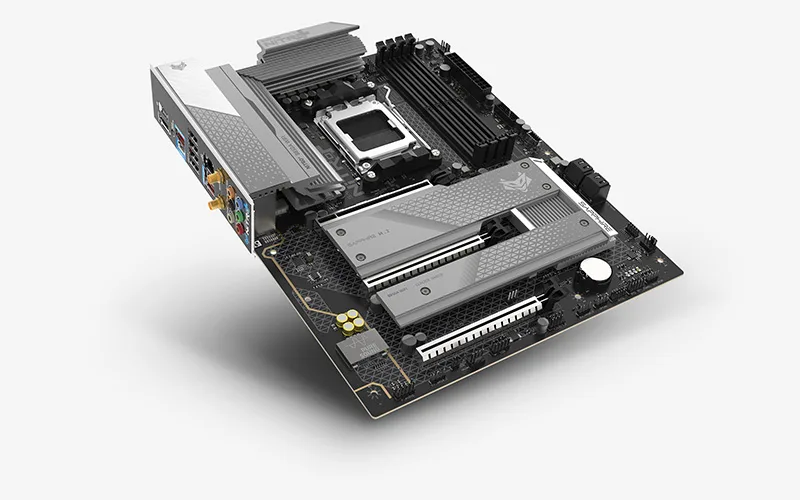

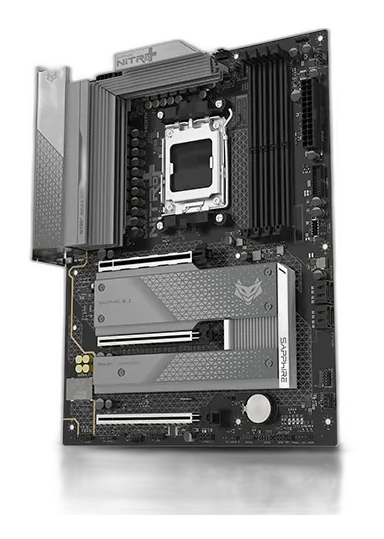

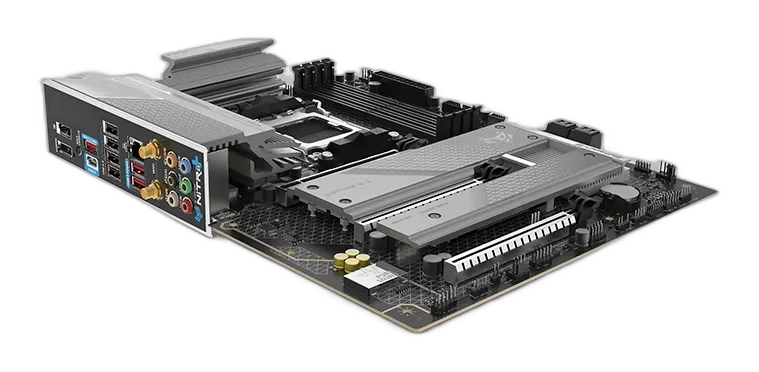

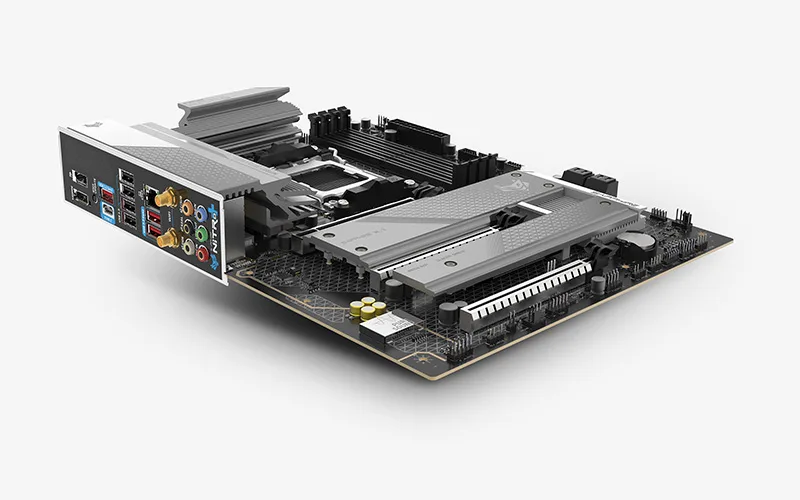

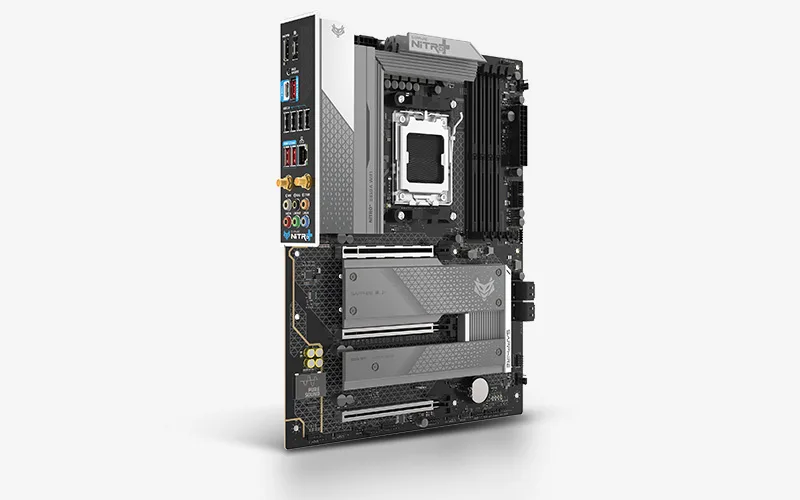

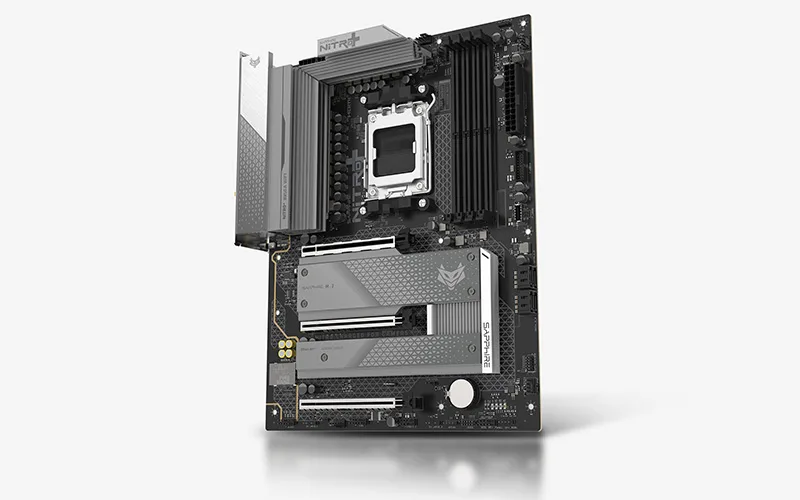

Hover to zoom · click for full imageSapphire's NITRO+ B850A WiFi 7 is an AM5 ATX board with PCIe 5.0, a 12+2+1 power stage, triple M.2, 2.5GbE LAN and WiFi 7 for Ryzen 9000 builds.
The NITRO+ B850A WiFi 7 is Sapphire's enthusiast AM5 motherboard built on the AMD B850 chipset for Ryzen 9000, 8000 and 7000 series processors. It pairs a 12+2+1 phase power design rated at 55A per phase with heavy VRM, M.2 and chipset cooling, so high-core-count Ryzen chips stay stable under sustained load.
A PCIe 5.0 x16 slot feeds the latest graphics cards, while a PCIe 5.0 M.2 socket and two PCIe 4.0 M.2 sockets handle fast NVMe storage. Four DDR5 DIMM slots support up to 256GB of dual-channel memory at speeds up to 8000 MHz (OC). Wired networking uses 2.5 Gigabit Ethernet, backed by onboard WiFi 7 and Bluetooth 5.4.
Debug LEDs and a one-click BIOS Flash button make troubleshooting and updates simple, and the clean silver and black NITRO+ styling suits a showcase ATX build.
| Specification | Detail |
|---|---|
| Chipset | AMD B850 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX (305 x 244 mm) |
| Memory | 4x DDR5 DIMM, Dual Channel, up to 256GB |
| Memory Speed | Up to 8000 MHz (OC) |
| VRM | 12+2+1 Phase, 55A Per Phase |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2 |
| M.2 Slots | 1x PCIe 5.0, 2x PCIe 4.0 |
| SATA | 4x SATA 6Gb/s |
| LAN | Realtek RTL8125BG 2.5 Gigabit Ethernet |
| Wireless | WiFi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897 HD Audio, 7.1 Channel |
| Rear USB | 1x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen2 Type-A, 4x USB 2.0 |
| Display Out | 1x HDMI, 1x DisplayPort |
| Features | Debug LED, One-click BIOS Flash button |
| Part Number | SPR-52123-03-40G |
