Hover to zoom · click for full imageMicro-ATX AMD A620A motherboard for Socket AM5 Ryzen CPUs with DDR5, dual M.2 and PCIe 4.0 expansion.

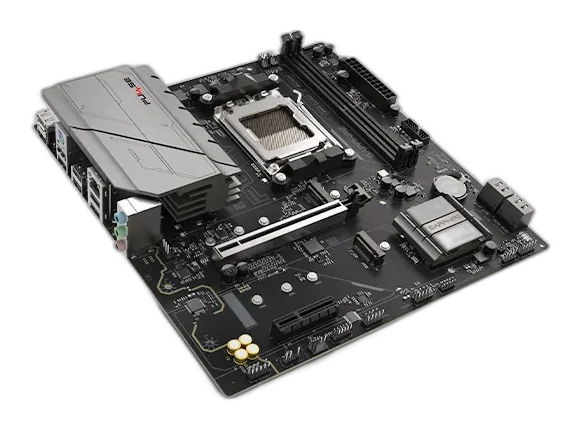

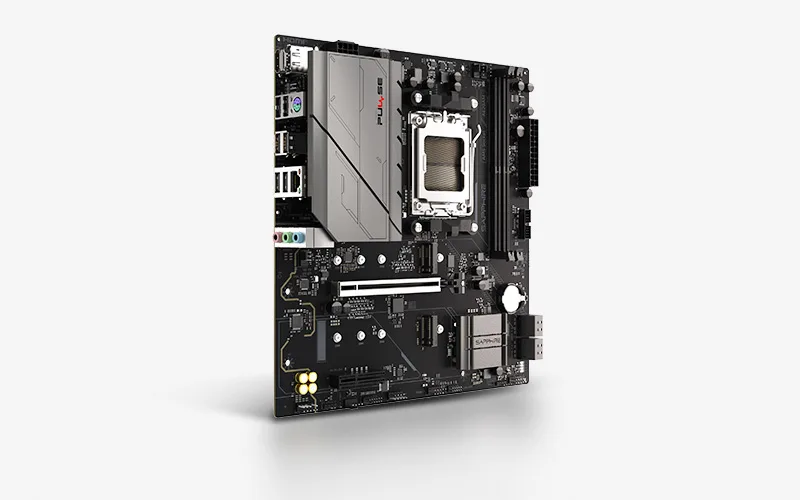

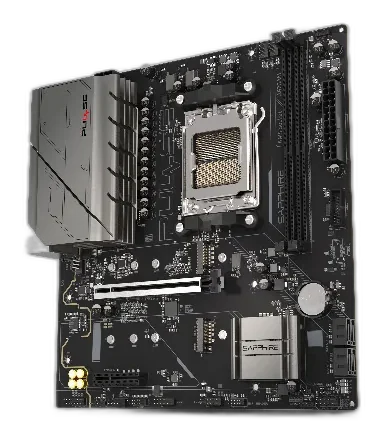

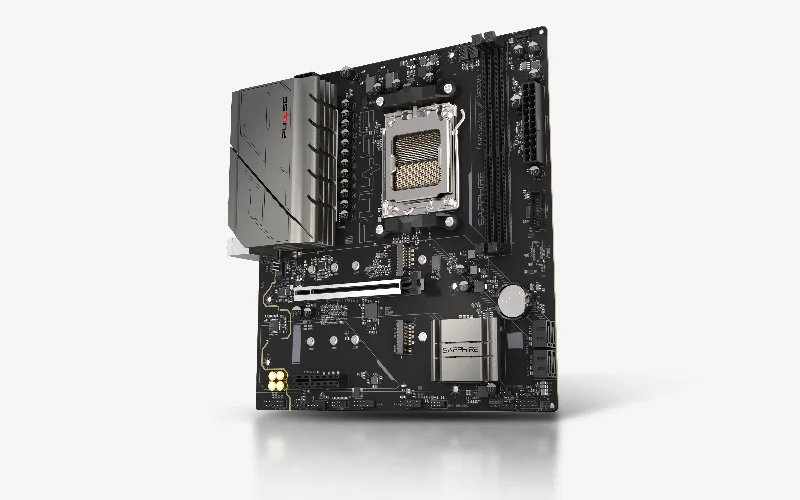

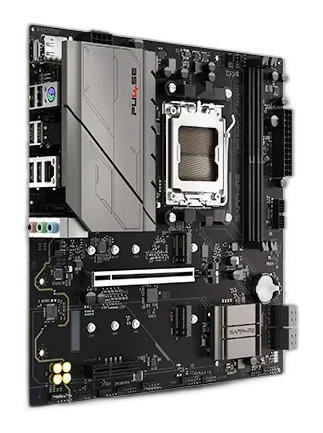

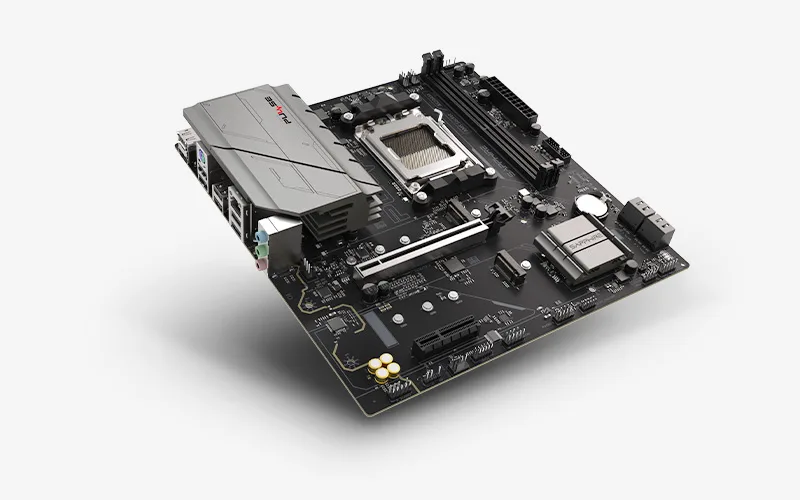

The Sapphire Pulse A620AM is a compact Micro-ATX motherboard for the AMD Socket AM5 platform, supporting Ryzen 9000, 8000 and 7000 Series desktop processors. It is a smart, cost effective entry point into next generation AMD gaming and productivity builds.
A 6+2+1 phase CPU power design rated at 55A per phase, paired with a dedicated VRM and PCH cooling setup, keeps your processor stable even under sustained load.
Two DIMM slots run dual channel DDR5 memory at speeds up to 7600 MHz (OC) for up to 64GB of capacity. A PCIe 4.0 M.2 slot delivers rapid NVMe storage, joined by a second PCIe 3.0 M.2 slot and four SATA ports for plenty of drives.

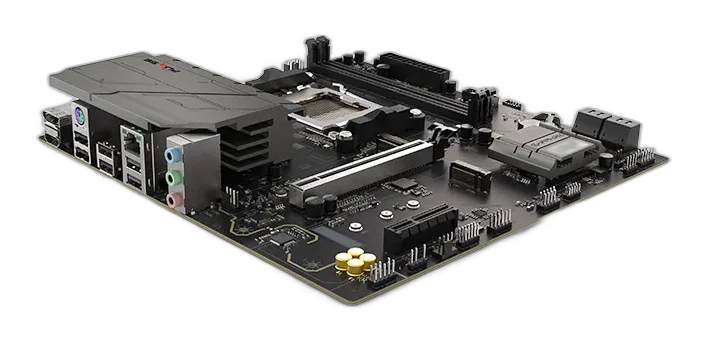

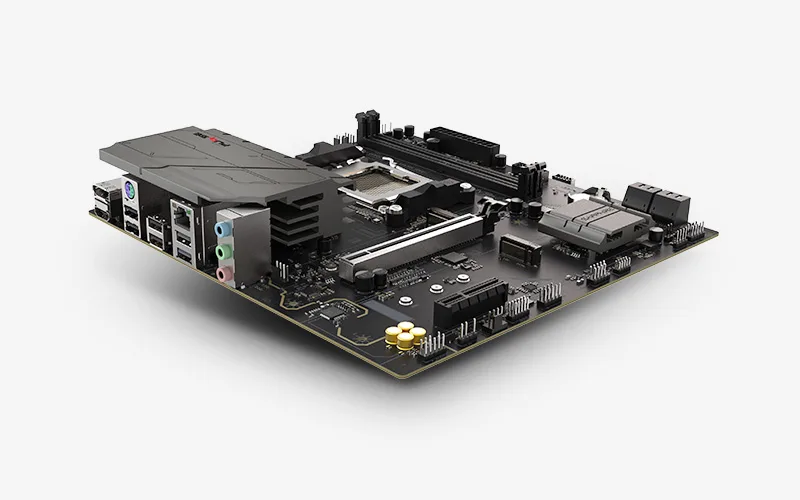

The PCIe 4.0 x16 slot gives your GPU full bandwidth, with a second PCIe 3.0 x4 slot for add in cards. Rear connectivity includes HDMI and DisplayPort outputs, Gigabit LAN, USB 3.2 Gen1 and USB 2.0 Type-A ports, and Realtek ALC897 5.1 channel HD audio.
| Specification | Detail |
|---|---|
| Chipset | AMD A620A |
| CPU Socket | AMD AM5 (Ryzen 9000 / 8000 / 7000 Series) |
| Form Factor | Micro-ATX (244 x 235 mm) |
| Memory | 2x DDR5 DIMM, dual channel, up to 64GB (2x 32GB), 7600 MHz (OC) |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4 |
| Storage | 1x M.2 (PCIe 4.0), 1x M.2 (PCIe 3.0), 4x SATA III |
| LAN | Realtek RTL8111K Gigabit Ethernet |
| Audio | Realtek ALC897 HD Audio (5.1 channel) |
| Display Outputs | HDMI, DisplayPort |
| Rear USB | 2x USB 3.2 Gen1 Type-A, 4x USB 2.0 |
| VRM | 6+2+1 phase CPU power, 55A per phase |
