MSI B760M PROJECT ZERO

Name: MSI B760M PROJECT ZERO
Brand: MSI
SKU: MSI-B760M-PROJECT-ZERO
Price: 55000 PKR
Availability: InStock

Rs 55,000

In stock

1 year local warranty

SKU: MSI-B760M-PROJECT-ZERO
Category: Motherboards

Description

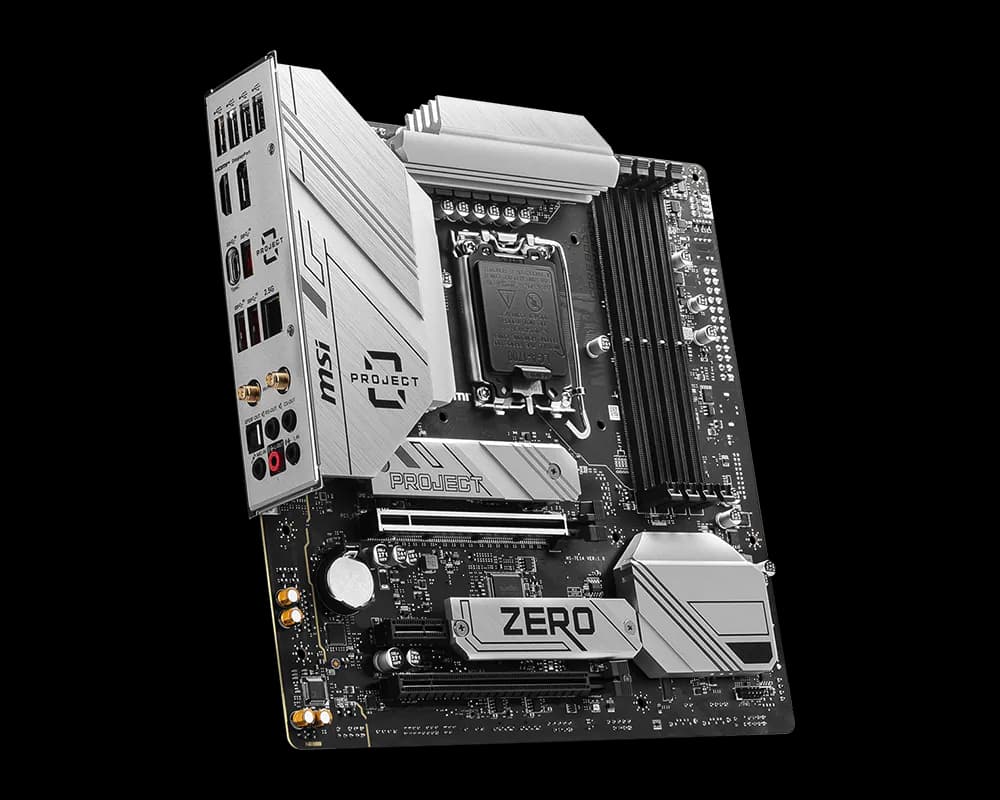

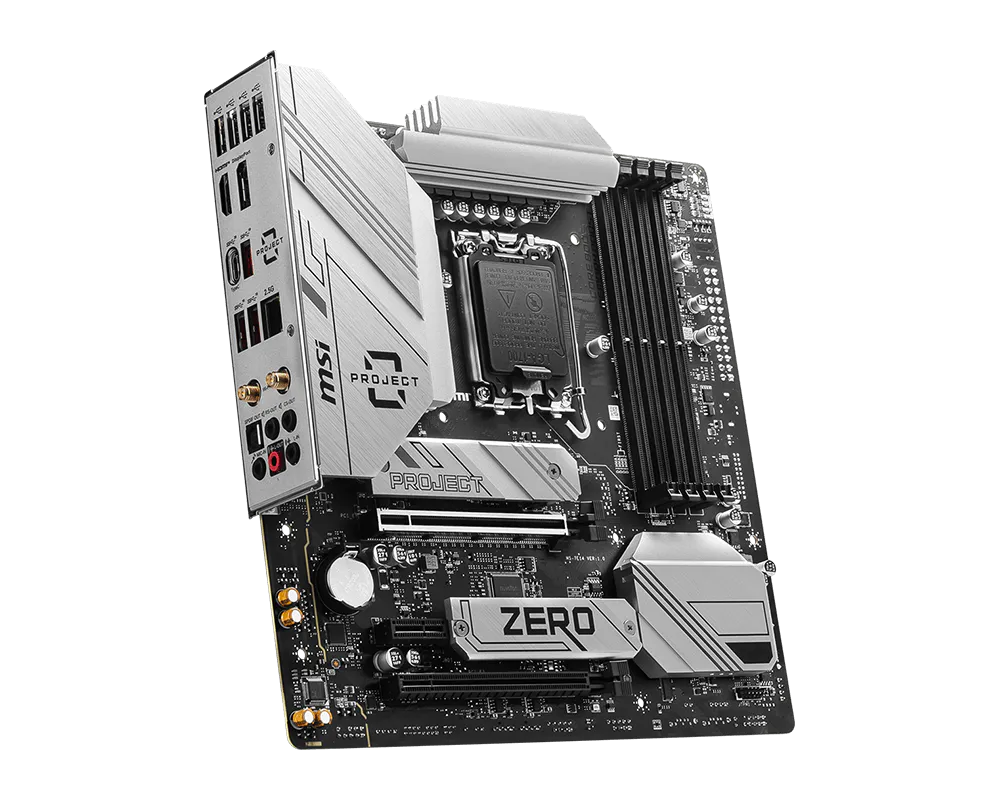

The MSI B760M PROJECT ZERO is a micro-ATX motherboard with a back-connect design that hides the power and data connectors behind the board for a clean, cable free front. It is made for builders who want a tidy showcase system in a compatible reverse connector case.

Key Features

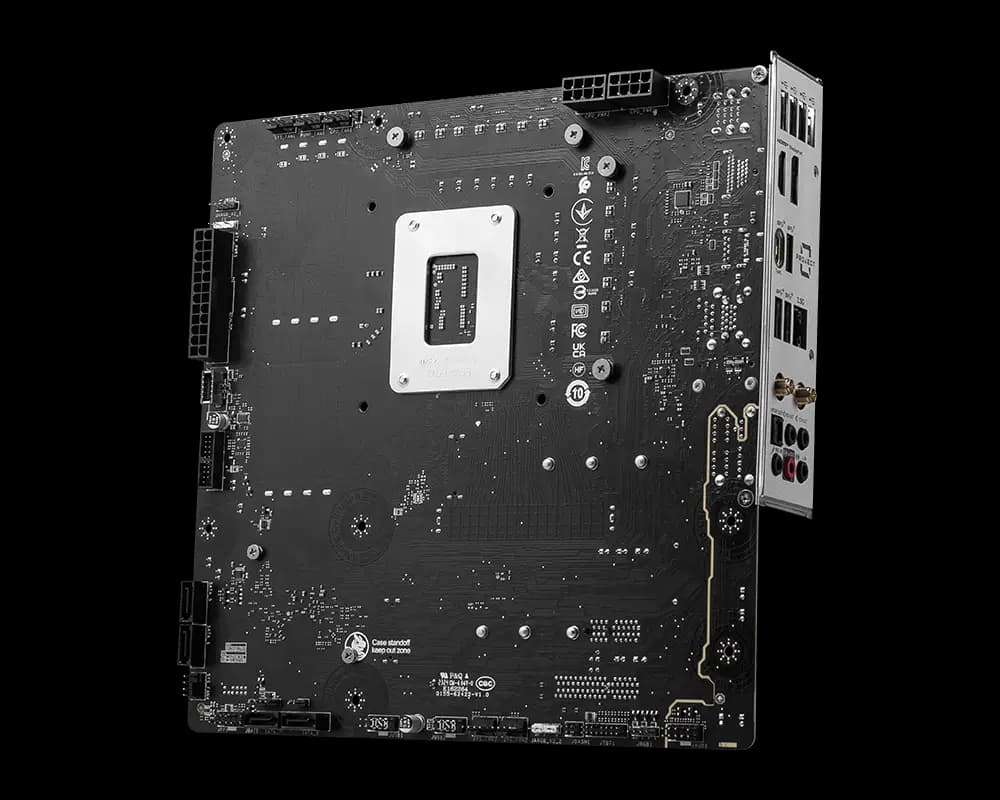

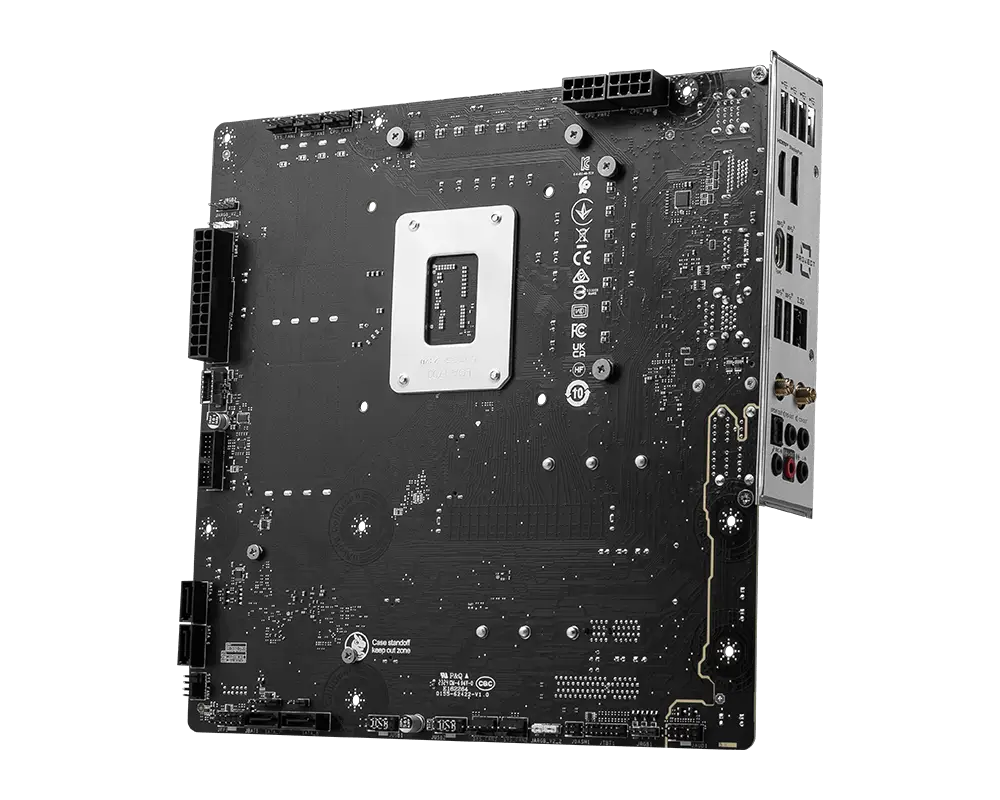

Back-connect design relocates power, fan and pin headers to the rear of the board
LGA 1700 socket for Intel Core 12th, 13th and 14th Gen, Pentium Gold and Celeron processors
Four DDR5 DIMM slots supporting up to 192GB, rated to 7800 MHz and above with overclocking
PCIe 5.0 x16 slot with Steel Armor for next generation graphics cards
Two Lightning Gen4 M.2 slots (PCIe 4.0 x4) for fast NVMe SSDs
Realtek 2.5G LAN plus Wi-Fi 6E with Bluetooth
USB Type-C at 20Gbps and Realtek ALC897 7.1 channel audio

A back-connect B760 board for clean, hidden cable Intel builds.

Specifications

Spec	Value
Type	Micro-ATX motherboard (back-connect)
Socket	LGA 1700
Chipset	Intel B760
CPU support	Intel Core 12th, 13th, 14th Gen
Memory	4x DDR5, up to 192GB, 7800+ MHz (OC)
Graphics slot	1x PCIe 5.0 x16
M.2	2x PCIe 4.0 x4
SATA	4x SATA 6Gb/s
LAN	Realtek 2.5G
Wireless	Wi-Fi 6E with Bluetooth
Audio	Realtek ALC897 (7.1 channel)
Display	HDMI 2.1, DisplayPort 1.4
