MSI B650M PROJECT ZERO

Name: MSI B650M PROJECT ZERO
Brand: MSI
SKU: MSI-B650M-PROJECT-ZERO
Price: 58500 PKR
Availability: InStock

Rs 58,500

In stock

1 year local warranty

SKU: MSI-B650M-PROJECT-ZERO
Category: Motherboards

Description

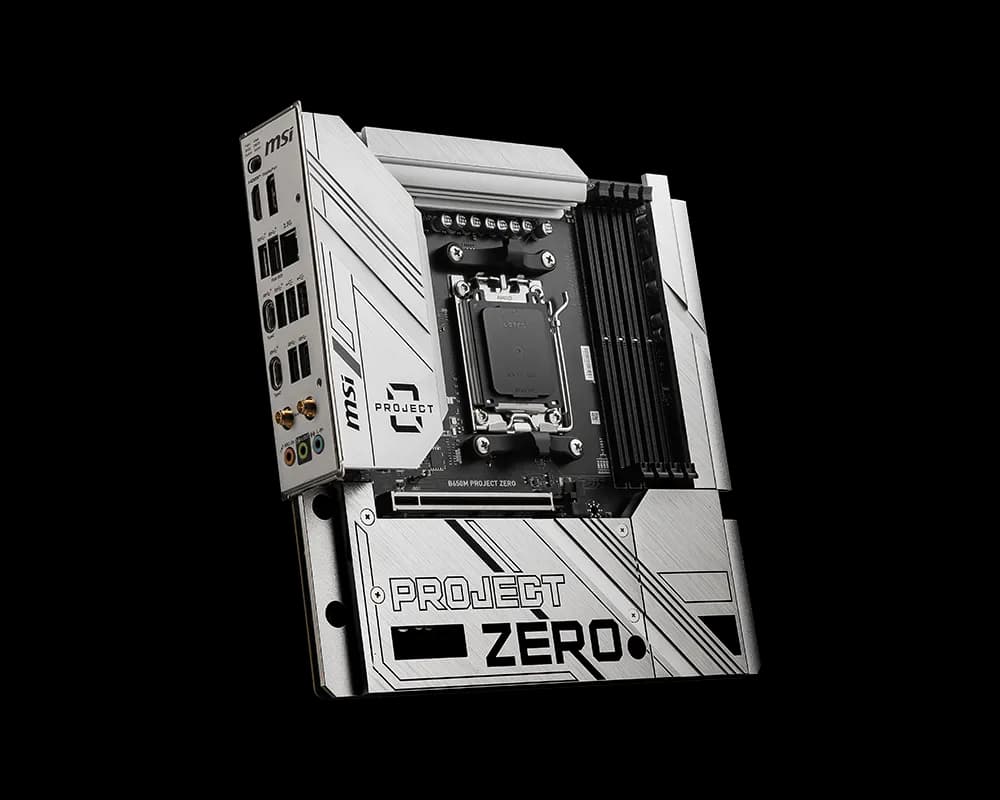

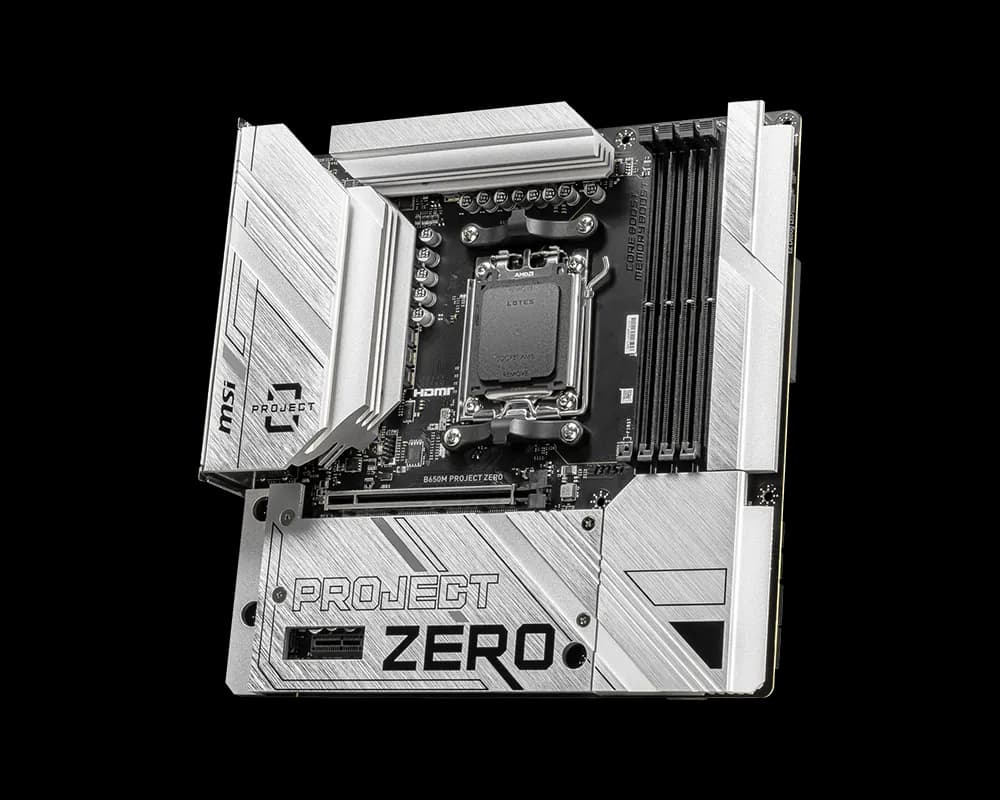

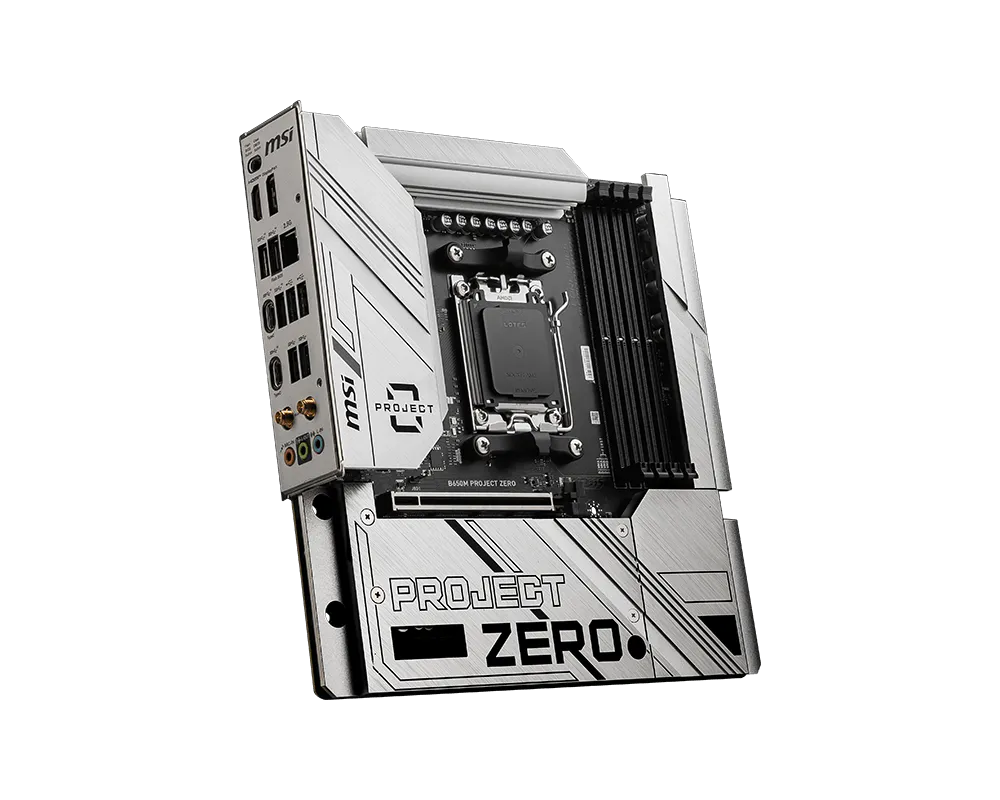

The MSI B650M PROJECT ZERO is a micro-ATX motherboard for Socket AM5 Ryzen processors with a back-connect design that moves the connectors behind the board for a clean, cable free front. It is built for tidy AM5 showcase systems in compatible reverse connector cases.

Key Features

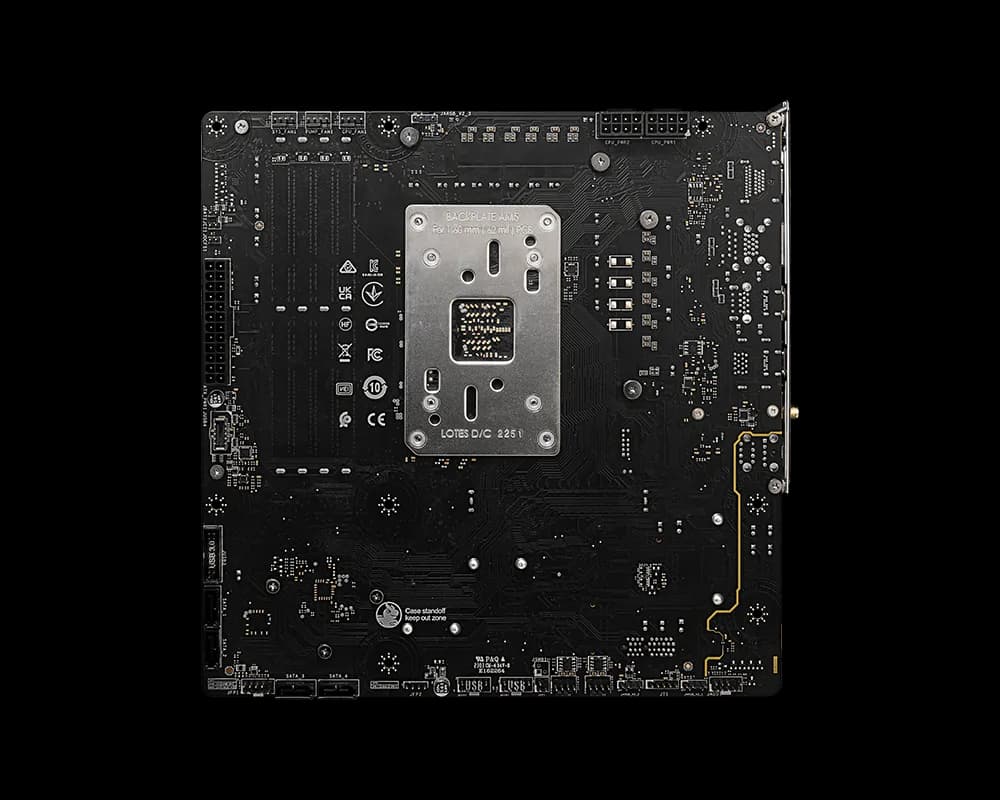

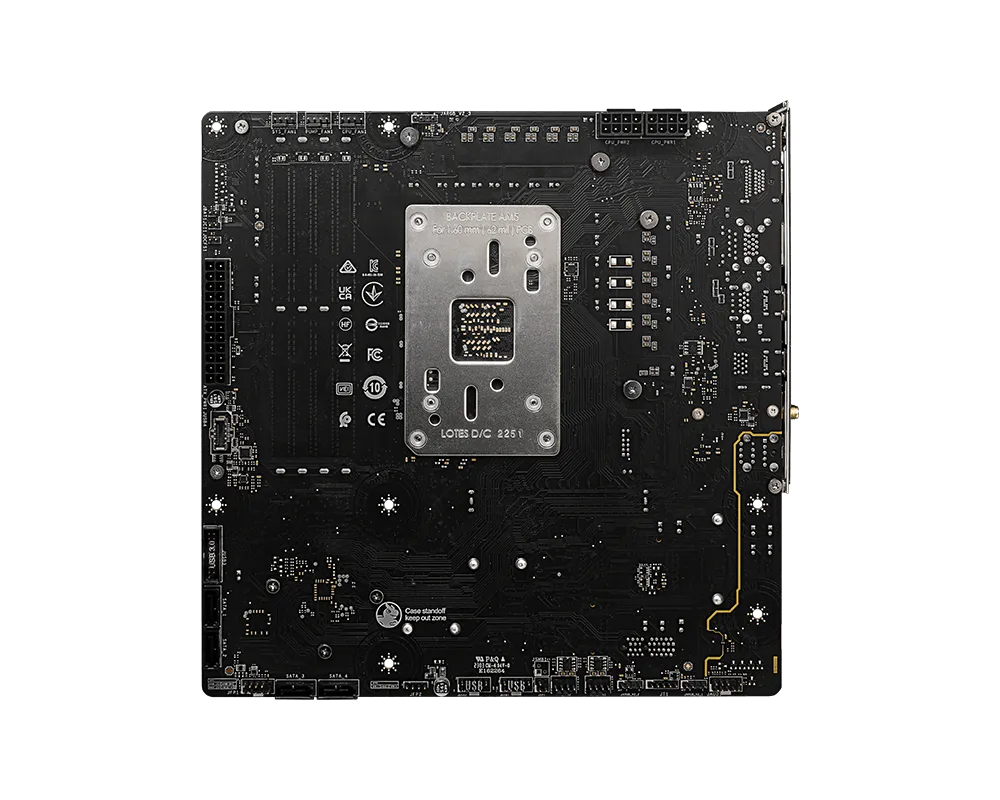

Back-connect design relocates power, fan and pin headers to the rear of the board
Socket AM5 for AMD Ryzen 7000, 8000 and 9000 Series processors
Four DDR5 DIMM slots supporting up to 128GB, rated to 7600 MHz and above with overclocking
PCIe 4.0 x16 slot with Steel Armor for the graphics card
Two Lightning Gen4 M.2 slots (PCIe 4.0 x4) for fast NVMe storage
Realtek 2.5G LAN plus AMD Wi-Fi 6E with Bluetooth
USB Type-C at 20Gbps and Realtek ALC897 7.1 channel audio

A back-connect B650 board for clean, hidden cable AM5 Ryzen builds.

Specifications

Spec	Value
Type	Micro-ATX motherboard (back-connect)
Socket	AMD AM5
Chipset	AMD B650
CPU support	Ryzen 7000, 8000, 9000 Series
Memory	4x DDR5, up to 128GB, 7600+ MHz (OC)
Graphics slot	1x PCIe 4.0 x16
M.2	2x PCIe 4.0 x4
SATA	4x SATA 6Gb/s
LAN	Realtek 2.5G
Wireless	AMD Wi-Fi 6E with Bluetooth
Audio	Realtek ALC897 (7.1 channel)

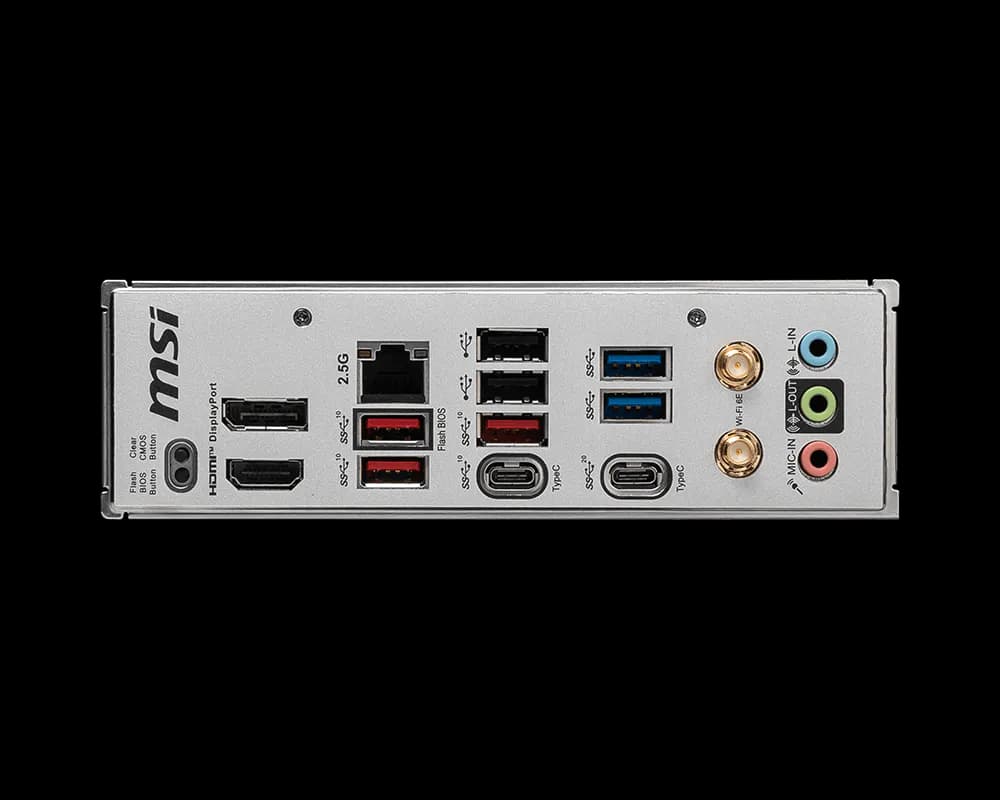

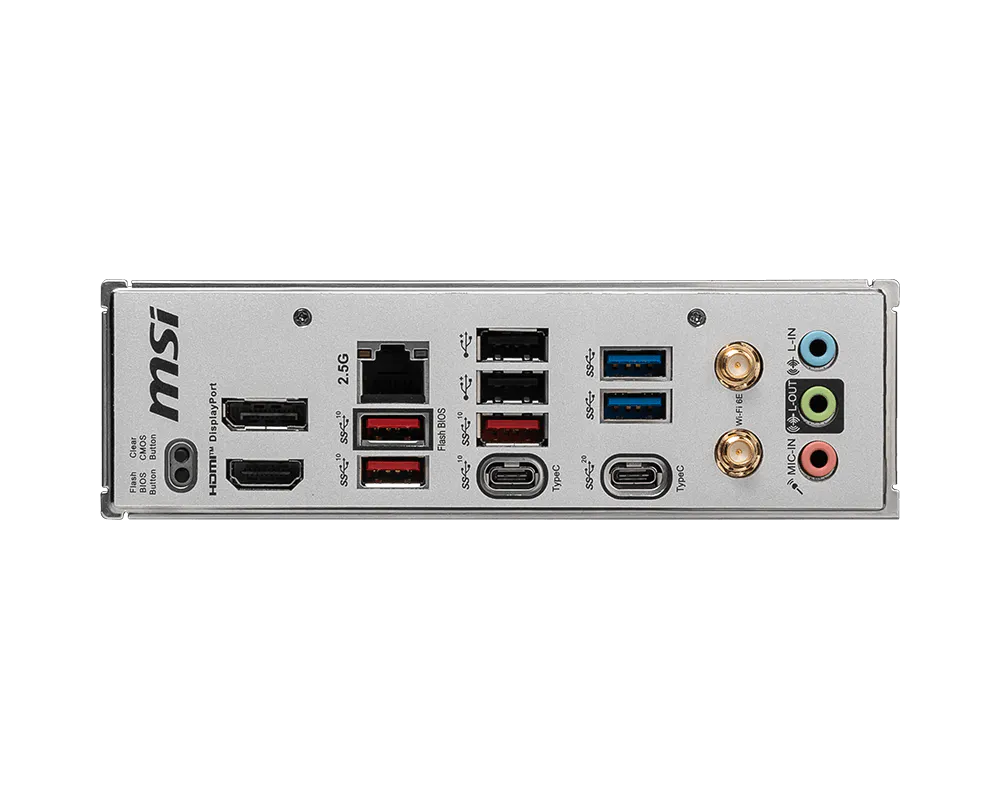

Display	HDMI, DisplayPort
