ASUS TUF Gaming B860M-PLUS WIFI

Name: ASUS TUF Gaming B860M-PLUS WIFI
Brand: ASUS
SKU: ASUS-TUF-GAMING-B860M-PLUS-WIFI
Price: 66000 PKR
Availability: InStock

Rs 66,000

In stock

1 year local warranty

SKU: ASUS-TUF-GAMING-B860M-PLUS-WIFI
Category: Motherboards

Description

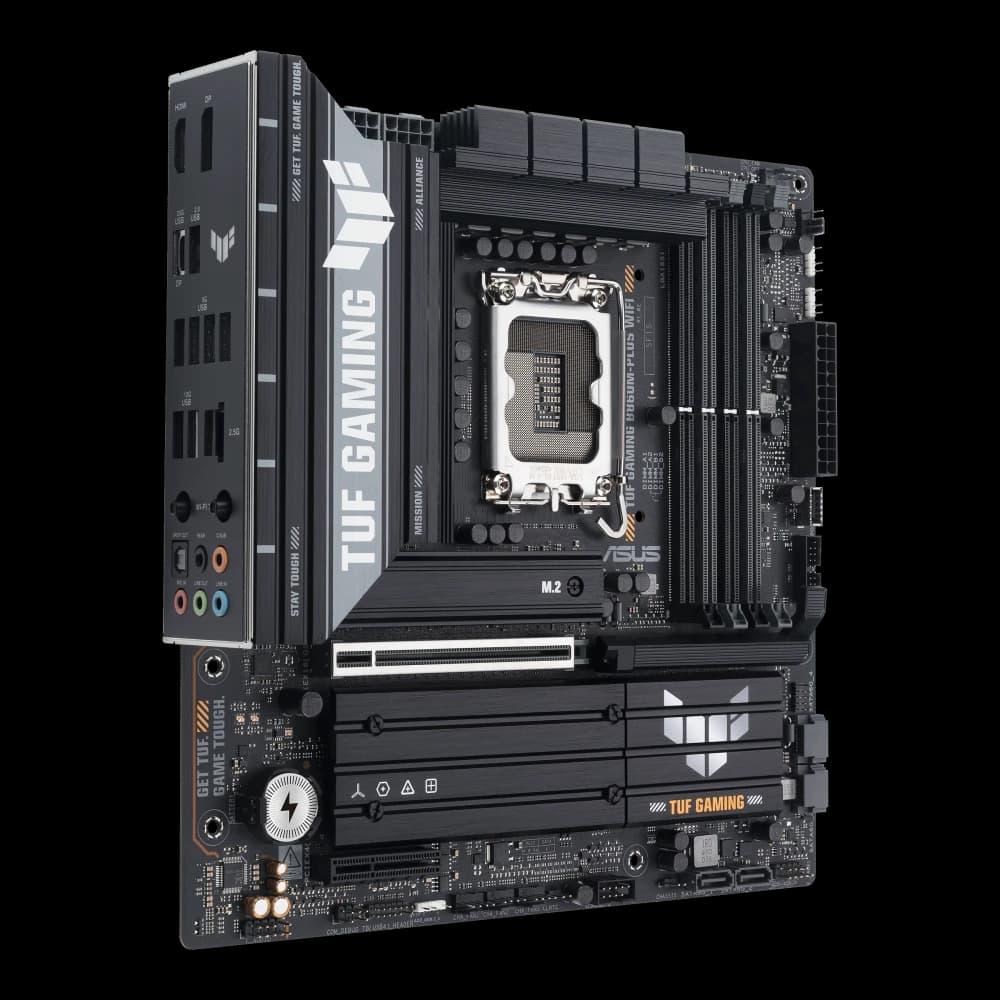

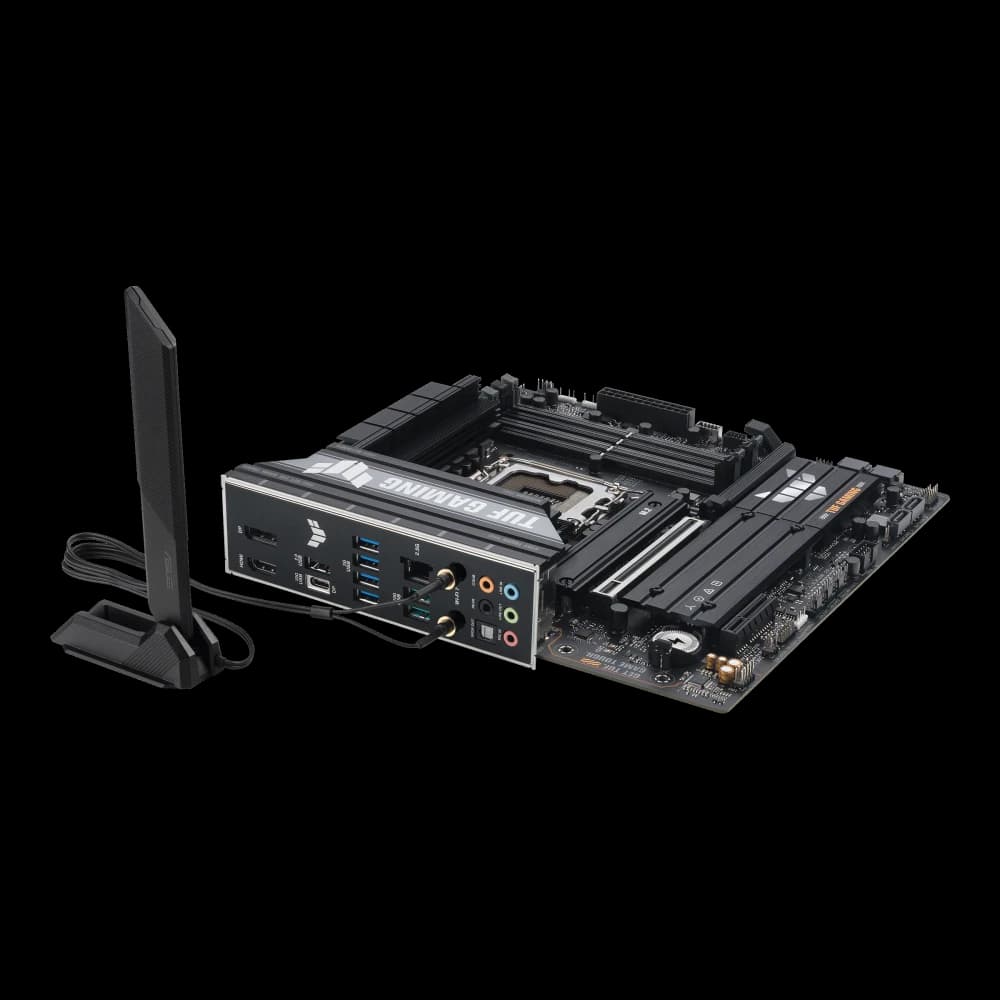

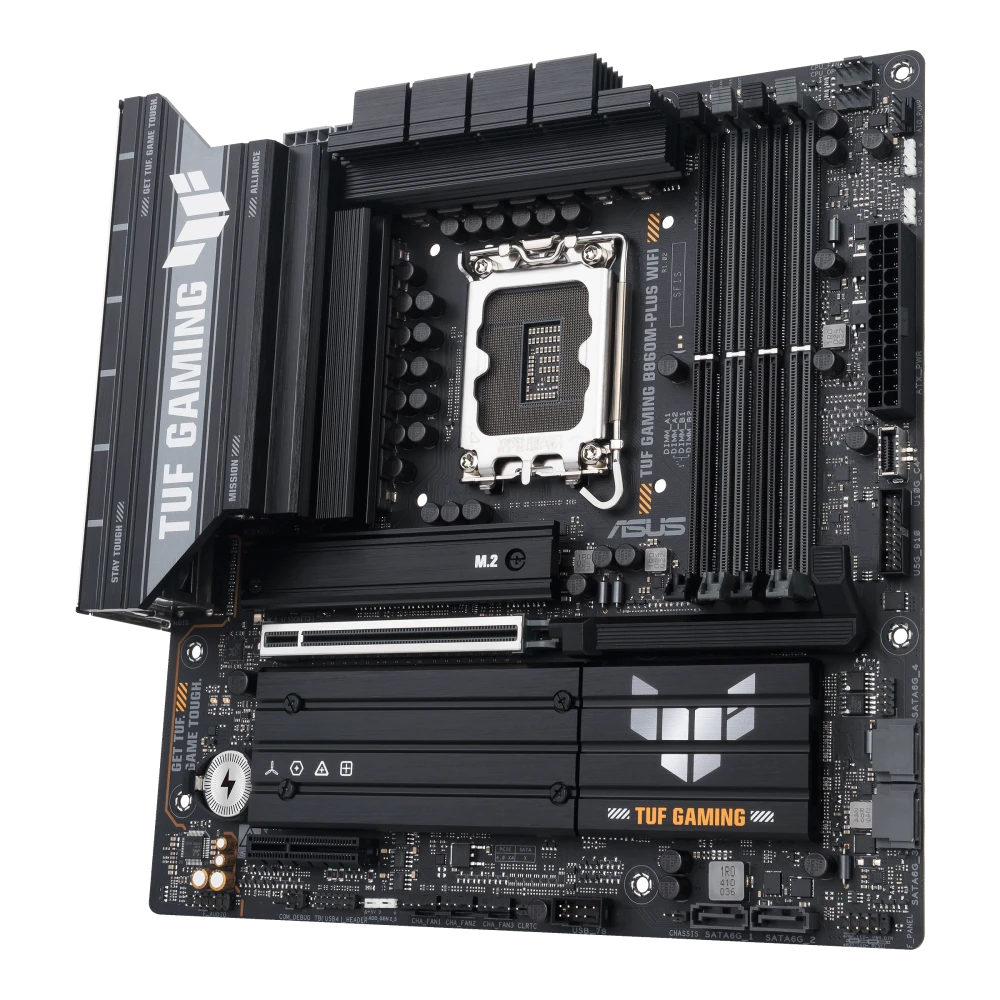

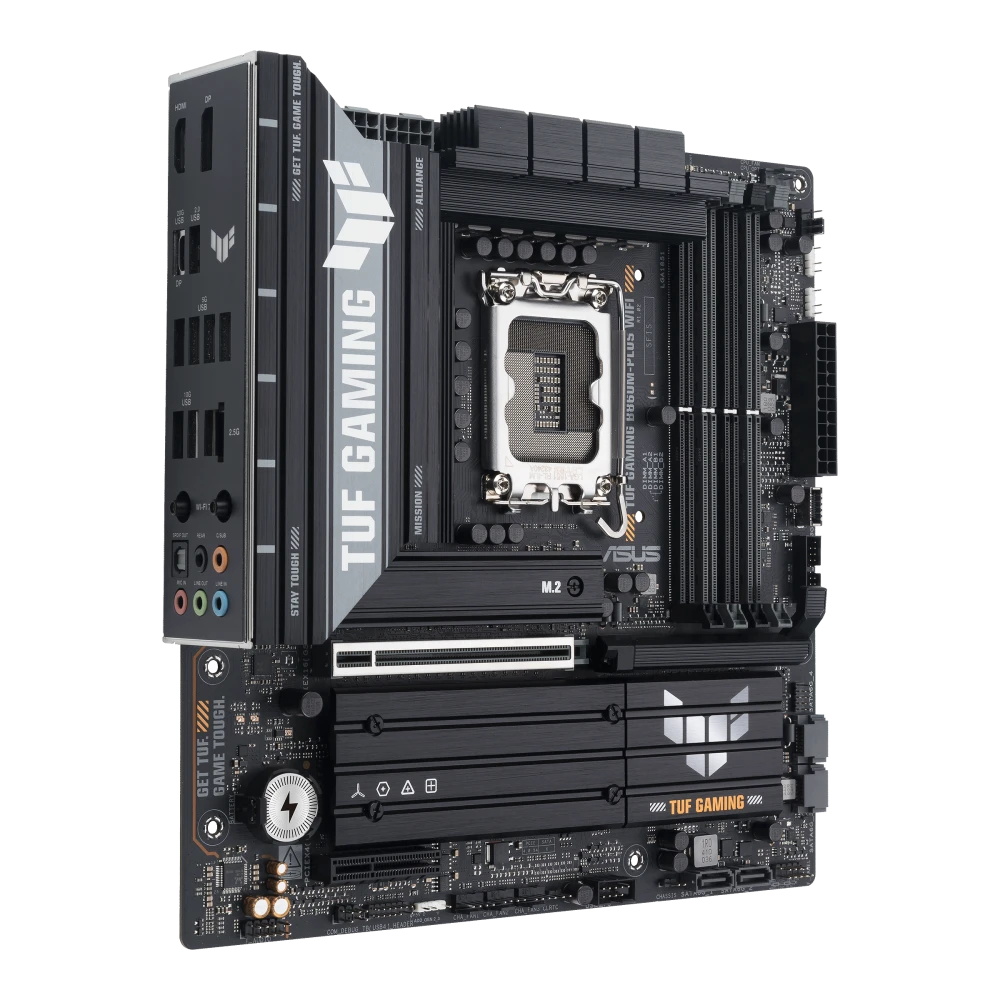

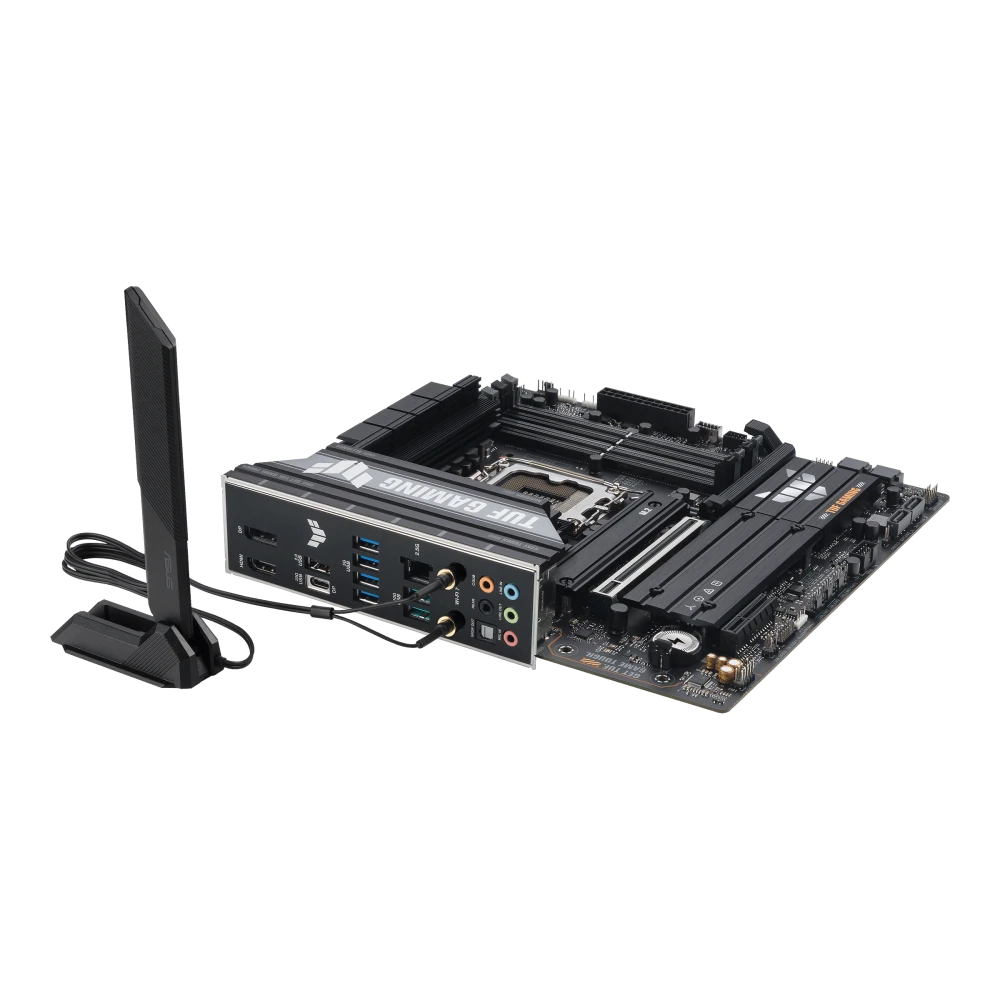

The ASUS TUF Gaming B860M-PLUS WIFI is an Intel B860 (LGA 1851) micro-ATX motherboard built around a robust 12+1+2+1 power stage design and Wi-Fi 7 for Intel Core Ultra Series 2 processors. It targets gamers who want durable power delivery and fast connectivity in a compact form.

Key Features

Intel B860 chipset on LGA 1851 for Intel Core Ultra Series 2 processors
12+1+2+1 DrMOS power stages rated at 80A for stable performance
Four DDR5 DIMM slots supporting up to 192GB at high overclocked speeds
PCIe 5.0 x16 slot plus three M.2 slots (one PCIe 5.0)
2x2 Wi-Fi 7 with Realtek 2.5Gb Ethernet

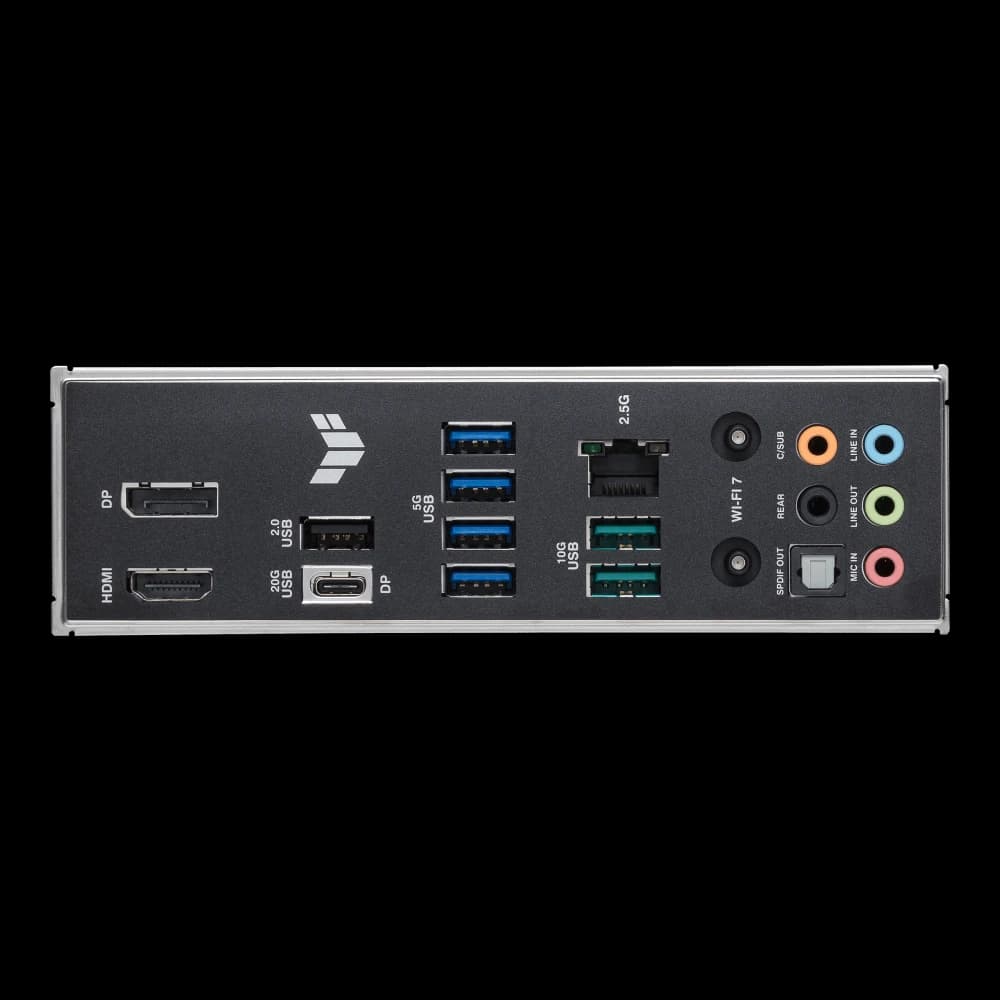

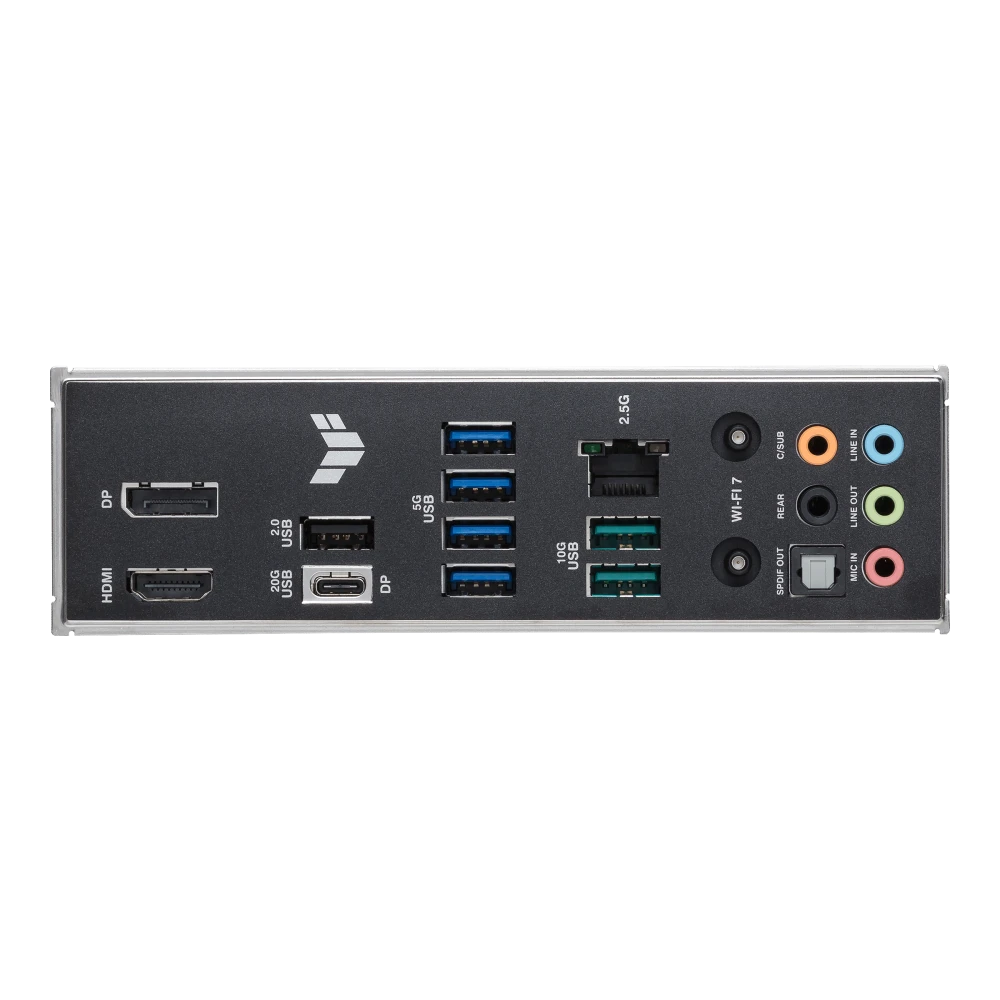

Rear USB 20Gbps Type-C and 10Gbps Type-A ports
HDMI 2.1 and DisplayPort 1.4 outputs with Realtek 7.1 audio

A durable, fast micro-ATX B860 board for compact Intel Core Ultra gaming rigs.

Specifications

Spec	Value
Type	Micro-ATX motherboard
Socket	Intel LGA 1851
Chipset	Intel B860
CPU support	Intel Core Ultra Series 2
Power stages	12+1+2+1 (80A DrMOS)
Memory	4 x DDR5, up to 192GB (OC)
Graphics slot	PCIe 5.0 x16
Storage	3 x M.2, 4 x SATA 6Gb/s
Wireless	Wi-Fi 7, Bluetooth
LAN	Realtek 2.5Gb Ethernet
Video output	HDMI 2.1, DisplayPort 1.4
Audio	Realtek 7.1 HD Audio
